Phillips pan head triangular machine screw

Phillips Pan Head Triangular Machine Screw

A specialized fastener designed for self-tapping into various materials, combining the aesthetic and functional benefits of a pan head with a unique triangular thread geometry for enhanced locking performance.

Key Features

• Pan Head Design: Provides a large bearing surface, distributing clamping force evenly and offering a finished appearance. Ideal for applications where a wide, low-profile head is required.

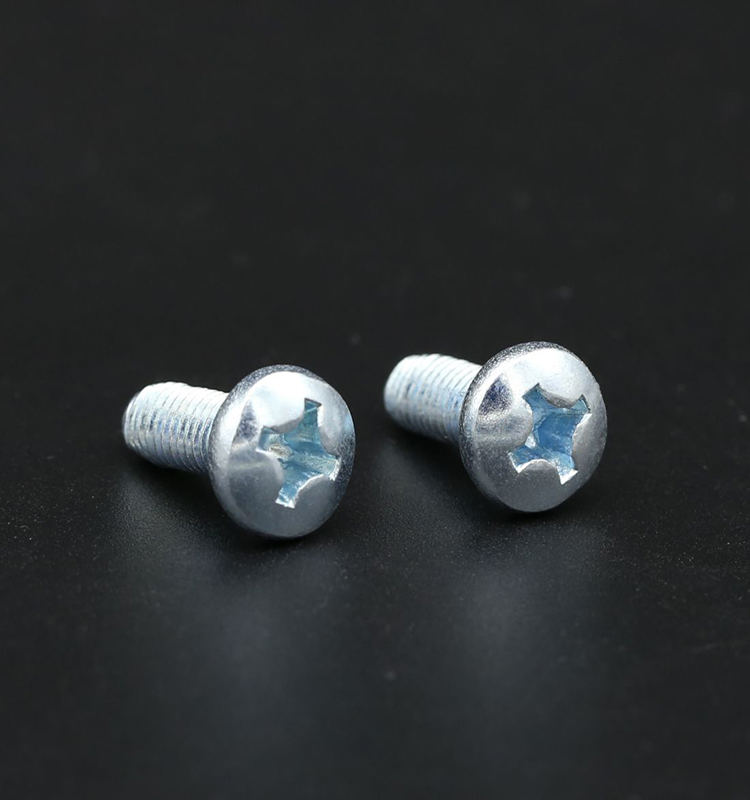

• Phillips Drive: Ensures a secure and reliable engagement with standard Phillips screwdrivers, minimizing cam-out and facilitating efficient assembly.

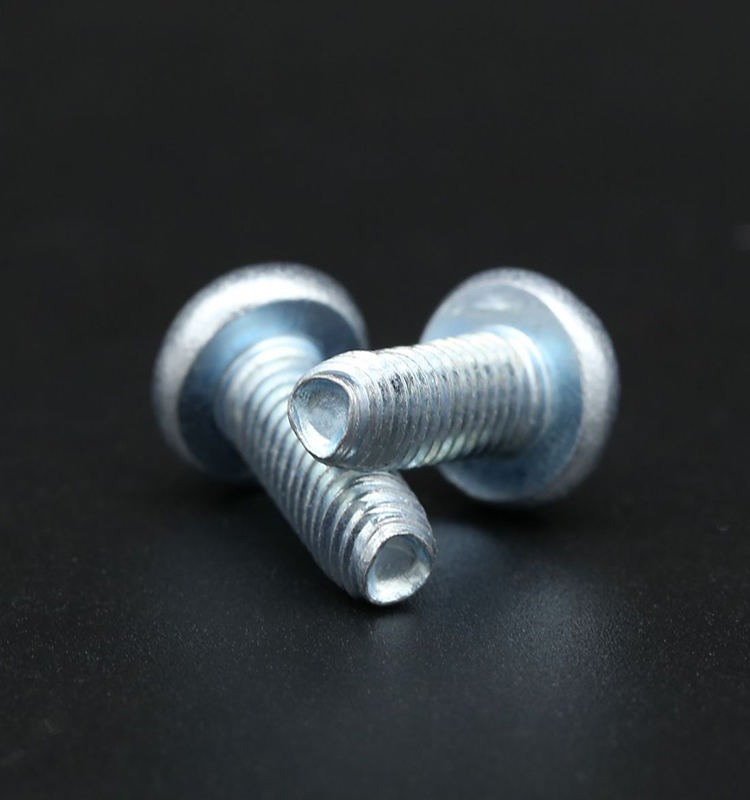

• Triangular Thread Profile: The screw shank features a non-circular, three-lobed cross-section. This design creates a cold-forming action as the screw is driven, forming mating threads in the parent material without the need for a pre-tapped hole.
• Enhanced Self-Locking: The thread-forming process generates a higher prevailing torque, which resists loosening under vibration and dynamic loads, making it a reliable choice for critical assemblies.

Technical Specifications

Applications

The Phillips pan head triangular machine screw is suitable for a variety of applications where a robust, self-tapping fastener is needed:

• Electronics and Consumer Devices
• Automotive Sub-assemblies and Trim
• Plastic Injection Molding
• Sheet Metal Fabrication
• Appliance Manufacturing

Common Procurement Inquiries

1. How does a triangular machine screw compare to a standard machine screw for use in plastics?

A standard machine screw requires a pre-tapped hole, which can lead to stripped threads if not properly aligned or torqued. The triangular machine screw, by contrast, is a self-tapping fastener specifically engineered to form its own threads in ductile materials like plastics. This thread-forming action creates a strong, precise fit that offers superior resistance to pull-out and vibration loosening. For optimal performance and to prevent stress cracking in plastic assemblies, careful selection of screw size and pilot hole diameter is crucial. Our technical team can assist you with a detailed analysis for your specific plastic resin and application.

2. What is the recommended installation torque for triangular machine screws, and can they be reused?

The installation torque for these fasteners is typically lower than for cutting screws, as they form threads through a displacement process. The specific torque value depends on the screw material, size, and the hardness of the mating material. Over-torquing can lead to material deformation and reduced joint strength. Regarding reusability, while a single installation and removal is often possible, repeated use can compromise the integrity of the formed threads in the base material, significantly reducing the clamping force and pull-out resistance. For mission-critical applications or those requiring a guaranteed joint strength, we recommend using a new screw for each assembly. We can provide detailed torque recommendations based on your material specifications and tooling for your assembly line.
